Power Connections
Revised Jul-14
For PM-24
(24 Volts dc source): into the clamp beneath the
appropriate POWER INPUT+ and POWER INPUT– termination
screws.
For PM-30
(30 Volts dc source): into the clamp beneath the
appropriate POWER INPUT+ and POWER INPUT– termination
screws.

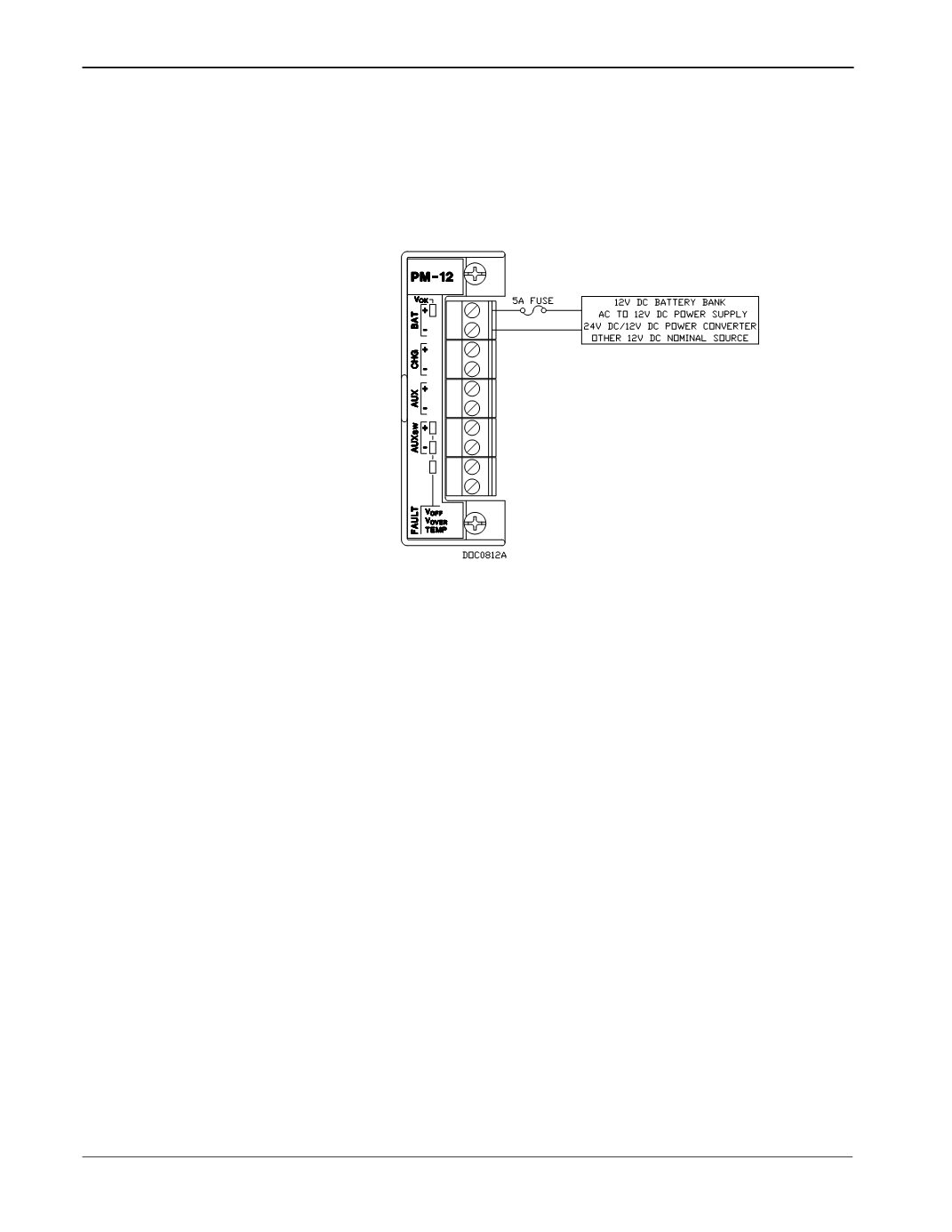

Figure 3-11. 12 Volts dc Power Supply and BAT+ / BAT- Wiring
6.
Screw each wire into the terminal block.
7.
Plug the terminal block connector back into the socket.
8.
If you are monitoring an external charge voltage (12 Volts dc Power
Input Module only), wire the CHG+ and CHG– terminal block
connector. Refer to
Figure 3-12
.
