ROC800-Series Instruction Manual
B-6
Wiring Diagrams
Revised Jul-14

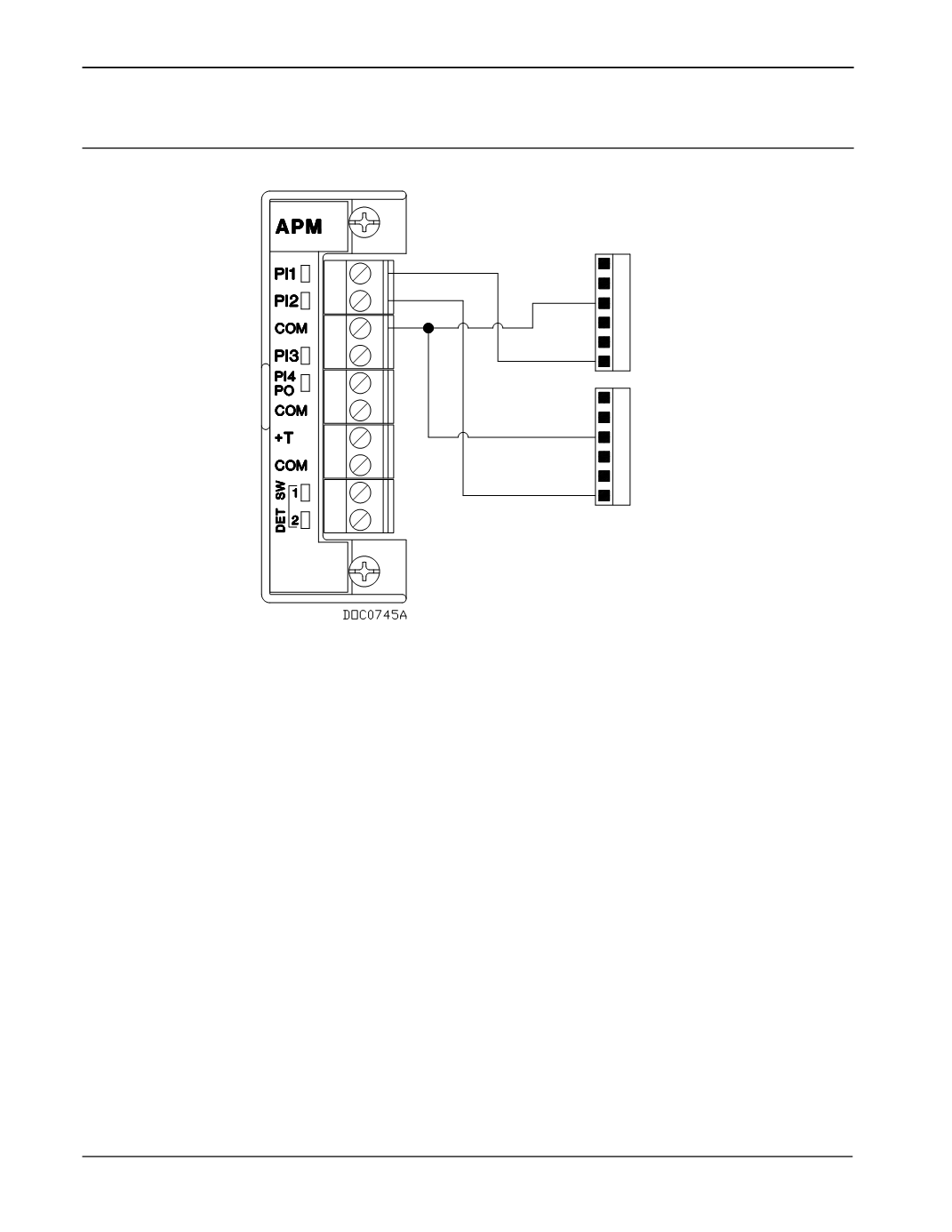

B.6 Daniel Senior Sonic Meter to APM Module
6 5 4 32 1 6 5 4 32 1
DANIEL
SENIOR SONIC
METER
J4
J4
DANIEL
SENIOR SONIC
METER
|
|
