Appendix B – Wiring Diagrams

This appendix presents wiring examples for several standard Emerson

devices. For other devices, refer to the manufacturer’s specifications.

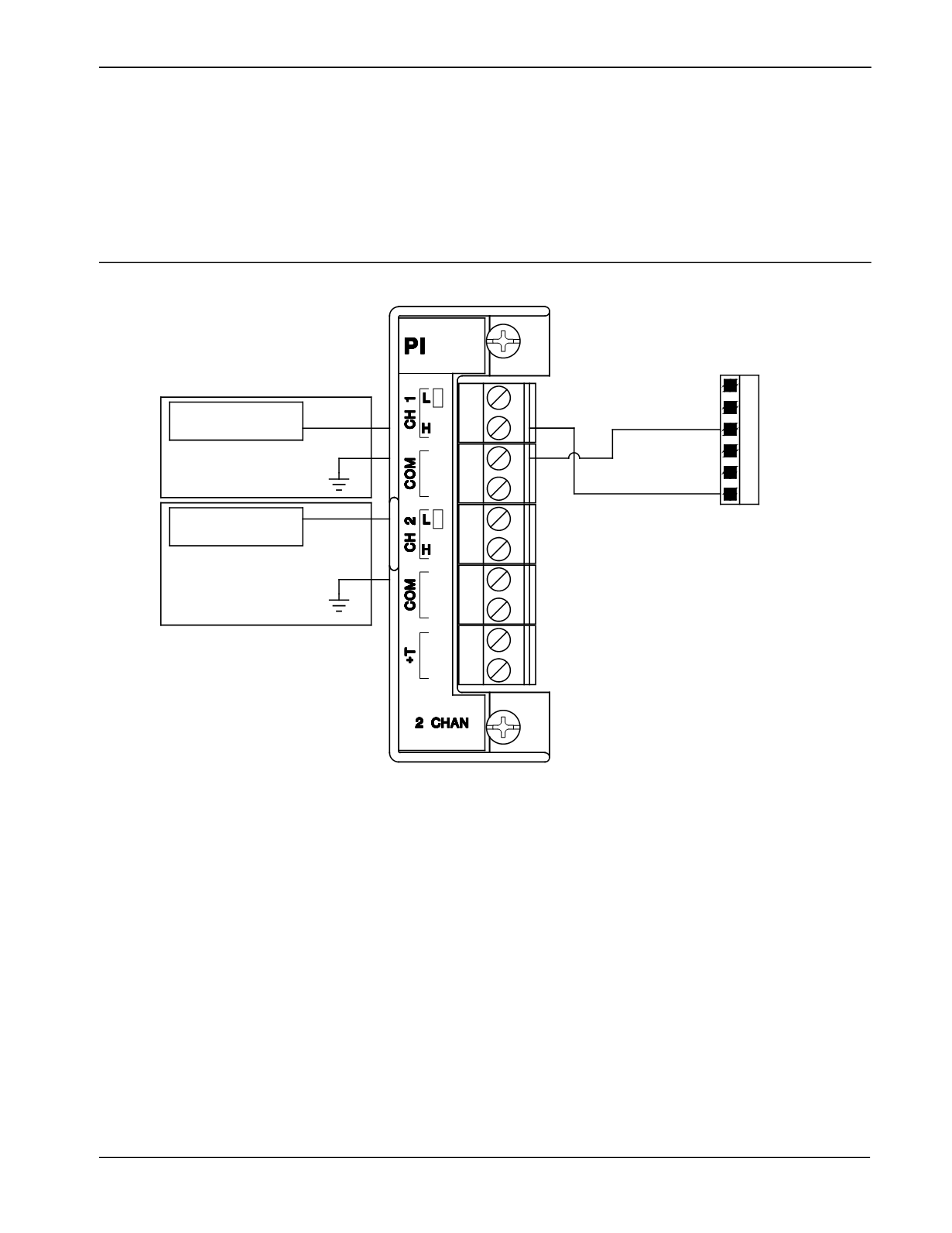

B.1 Daniel Senior Sonic Meter to PI Module

12KHz PI FILTER &

LEVEL DETECTION

12KHz PI FILTER &

LEVEL DETECTION

DOC0737A

6 5 4 32 1

DANIEL

SENIOR SONIC

METER
